1、下载docker镜像

docker pull seataio/seata-server:1.6.1

2、创建临时容器

docker run -d \
  --name seata-server \
  -p 8091:8091 \
  -p 7091:7091 \
  -e SEATA_IP=192.168.80.192 \
  -e SEATA_PORT=8091 \
  seataio/seata-server:1.6.1

3、从容器中拷贝配置文件目录

提前创建好/server/seata/目录

docker cp seata-server:/seata-server/resources /server/seata/resources

4、删除临时容器

docker stop seata-server

docker rm seata-server

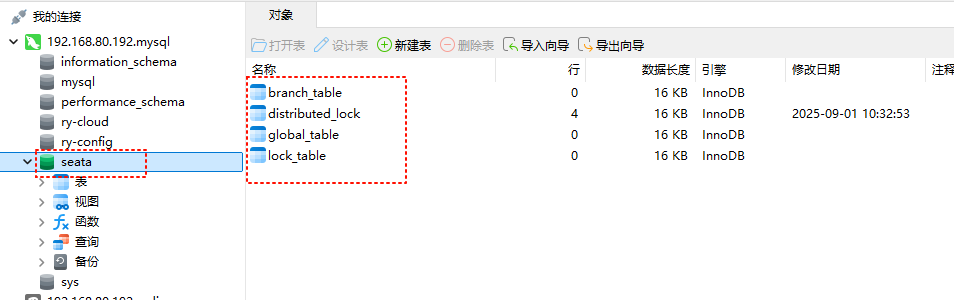

5、创建seata数据库以及表

-- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_status_gmt_modified` (`status` , `gmt_modified`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(128),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `status`         TINYINT      NOT NULL DEFAULT '0' COMMENT '0:locked ,1:rollbacking',
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_status` (`status`),
    KEY `idx_branch_id` (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

CREATE TABLE IF NOT EXISTS `distributed_lock`
(
    `lock_key`       CHAR(20) NOT NULL,
    `lock_value`     VARCHAR(20) NOT NULL,
    `expire`         BIGINT,
    primary key (`lock_key`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);

6、创建新容器

增加了配置文件目录的映射

docker run -d \
  --name seata-server \
  -p 8091:8091 \
  -p 7091:7091 \
  -v /server/seata/resources:/seata-server/resources \
  -e SEATA_IP=192.168.80.192 \
  -e SEATA_PORT=8091 \
  seataio/seata-server:1.6.1

7、在nacos中新增配置seataServer.properties

# 数据存储方式，db代表数据库
store.mode=db
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://192.168.80.192:3306/seata?useUnicode=true&rewriteBatchedStatements=true&serverTimezone=GMT

store.db.user=root
store.db.password=root
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.lockTable=lock_table
store.db.distributedLockTable=distributed_lock
store.db.queryLimit=100
store.db.maxWait=5000
# 事务、日志等配置
server.recovery.committingRetryPeriod=3000
server.recovery.asynCommittingRetryPeriod=3000
server.recovery.rollbackingRetryPeriod=3000
server.recovery.timeoutRetryPeriod=3000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000

# 客户端与服务端传输方式
transport.serialization=seata
transport.compressor=none
# 关闭metrics功能，提高性能
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898

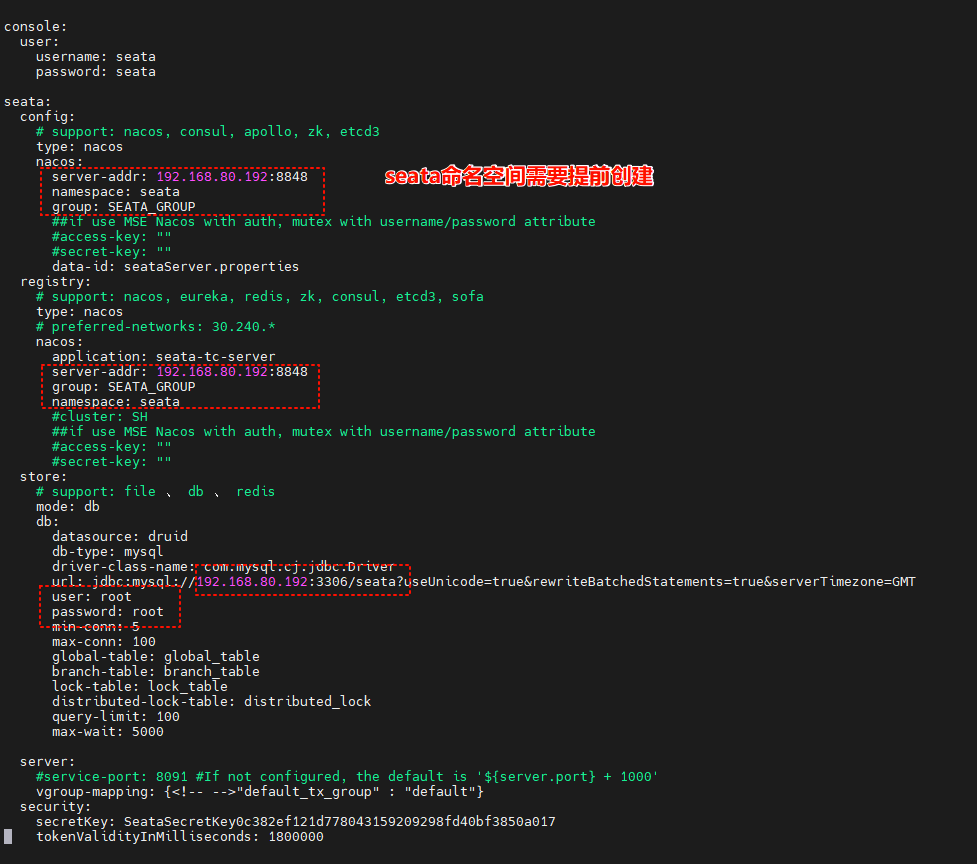

8、修改/server/seata/resources目录下的application.yml

修改内容如下：

#  Copyright 1999-2019 Seata.io Group.
#
#  Licensed under the Apache License, Version 2.0 (the "License");
#  you may not use this file except in compliance with the License.
#  You may obtain a copy of the License at
#
#  http://www.apache.org/licenses/LICENSE-2.0
#
#  Unless required by applicable law or agreed to in writing, software
#  distributed under the License is distributed on an "AS IS" BASIS,
#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#  See the License for the specific language governing permissions and
#  limitations under the License.

server:
  port: 7091

spring:
  application:
    name: seata-tc-server

logging:
  config: classpath:logback-spring.xml
  file:
    path: ${user.home}/logs/seata
  extend:
    logstash-appender:
      destination: 192.168.80.192:4560
    kafka-appender:
      bootstrap-servers: 192.168.80.192:9092
      topic: logback_to_logstash

console:
  user:
    username: seata
    password: seata

seata:
  config:
    # support: nacos, consul, apollo, zk, etcd3
    type: nacos
    nacos:
      server-addr: 192.168.80.192:8848
      namespace: seata
      group: SEATA_GROUP
      ##if use MSE Nacos with auth, mutex with username/password attribute
      #access-key: ""
      #secret-key: ""
      data-id: seataServer.properties
  registry:
    # support: nacos, eureka, redis, zk, consul, etcd3, sofa
    type: nacos
    # preferred-networks: 30.240.*
    nacos:
      application: seata-tc-server
      server-addr: 192.168.80.192:8848
      group: SEATA_GROUP
      namespace: seata
      #cluster: SH
      ##if use MSE Nacos with auth, mutex with username/password attribute
      #access-key: ""
      #secret-key: ""
  store:
    # support: file 、 db 、 redis
    mode: db
    db:
      datasource: druid
      db-type: mysql
      driver-class-name: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://192.168.80.192:3306/seata?useUnicode=true&rewriteBatchedStatements=true&serverTimezone=GMT
      user: root
      password: root
      min-conn: 5
      max-conn: 100
      global-table: global_table
      branch-table: branch_table
      lock-table: lock_table
      distributed-lock-table: distributed_lock
      query-limit: 100
      max-wait: 5000

  server:
    #service-port: 8091 #If not configured, the default is '${server.port} + 1000'
    vgroup-mapping: {<!-- -->"default_tx_group" : "default"}
  security:
    secretKey: SeataSecretKey0c382ef121d778043159209298fd40bf3850a017
    tokenValidityInMilliseconds: 1800000
    ignore:
      urls: /,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-fe/public/**,/api/v1/auth/login

9、重启seata的docker容器

docker restart seata-server

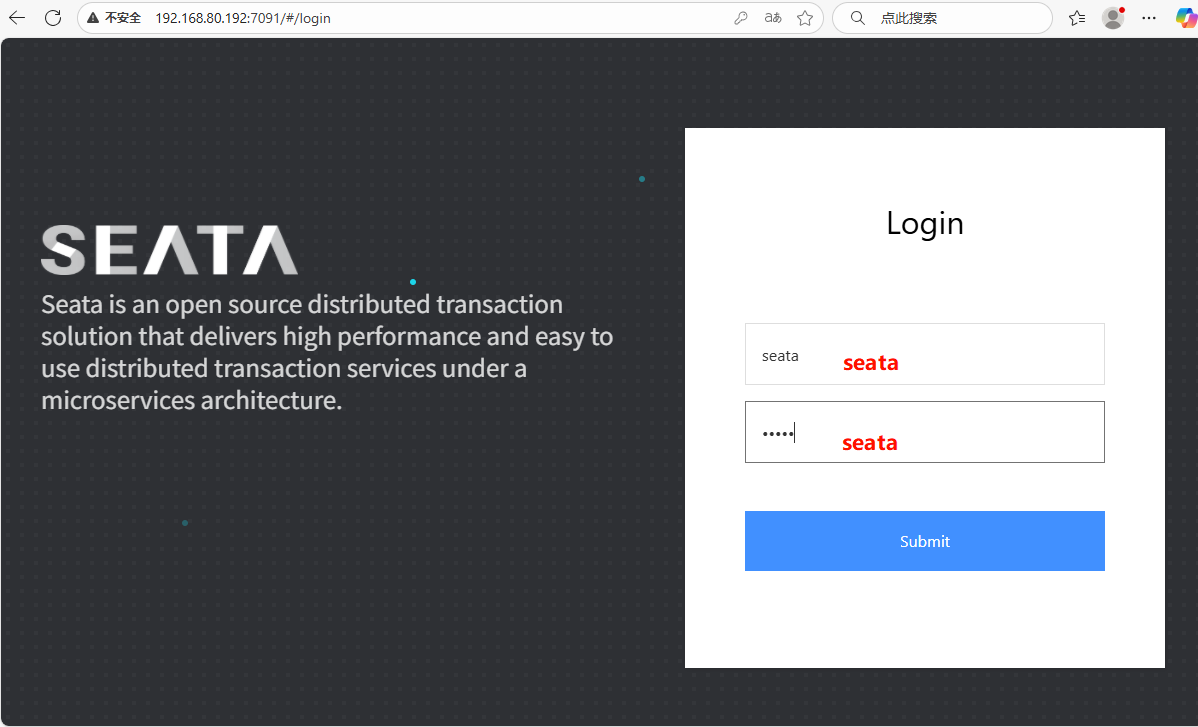

10、访问后台

地址：http://192.168.80.192:7091/#/login
账号：seata 密码：seata

11、项目中引入依赖

（1）父工程pom文件引入

<properties>
   <seata.version>1.6.1</seata.version>
</properties>

</dependencies>
   <dependency>
        <groupId>io.seata</groupId>
        <artifactId>seata-all</artifactId>
        <version>${seata.version}</version>
   </dependency>
</dependencies>

（2）子工程pom文件引入

        <!--分布式事务seata-->
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>${seata.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <version>${spring.cloud.alibaba.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-all</artifactId>
                </exclusion>
                <exclusion>
                    <artifactId>seata-spring-boot-starter</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>

（3）yml配置

# seata 配置， 代替file.conf和registry.conf配置
# seata 配置， 代替file.conf和registry.conf配置
sfs:
  nacos:
    server-addr: 127.0.0.1:8848
    namespace: 967df0d8-156b-441a-a5ab-615b4a865168
    group: MY_GROUP
seata:
  enabled: true
  application-id : ${spring.application.name}
  tx-service-group: default_tx_group
  use-jdk-proxy: true
  enable-auto-data-source-proxy: true
  registry:
    type: nacos
    nacos:
      application: seata-tc-server
      server-addr: ${sfs.nacos.server-addr}
      namespace: ${sfs.nacos.namespace}
      group: ${sfs.nacos.group}
  config:
    type: nacos
    nacos:
      server-addr: ${sfs.nacos.server-addr}
      namespace: ${sfs.nacos.namespace}
      group: ${sfs.nacos.group}
  service:
    vgroupMapping:
      default_tx_group: default

#禁用hystrix导致启动失败
feign:
  hystrix:
    enabled: false

（4）实现类上加上

 @GlobalTransactional(rollbackFor = Exception.class)

（5）每个数据库上加上undo_log

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for undo_log
-- ----------------------------
DROP TABLE IF EXISTS `undo_log`;
CREATE TABLE `undo_log`  (
  `branch_id` bigint(20) NOT NULL COMMENT '分支事务ID',
  `xid` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '全局事务ID',
  `context` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '上下文',
  `rollback_info` longblob NOT NULL COMMENT '回滚信息',
  `log_status` int(11) NOT NULL COMMENT '状态，0正常，1全局已完成',
  `log_created` datetime(6) NOT NULL COMMENT '创建时间',
  `log_modified` datetime(6) NOT NULL COMMENT '修改时间',
  UNIQUE INDEX `ux_undo_log`(`xid`, `branch_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = 'AT transaction mode undo table' ROW_FORMAT = Compact;

SET FOREIGN_KEY_CHECKS = 1;

参考文章

• https://blog.csdn.net/pi_tiger/article/details/131110412
• https://blog.csdn.net/qq_33222798/article/details/128918225
